Mingtan Hydroelectric Plant — Generator Y-Neutral Busbar Monitoring (16.5kV / 10,000A)

01 The Problem

Inside Taipower's Mingtan pumped-hydro plant, three massive generators push 10,000-amp currents through bare copper busbars to keep northern Taiwan's grid stable. The bolted joints carrying that current are fine — until one isn't. A joint that loosens by half a millimeter doesn't look different from the outside, but the contact resistance climbs, heat builds, and eventually the metal anneals and bends.

The Risk

Low-voltage panels and generator-output busbars handle currents up to 10,000A.

Detection Gap

Loose connections cause temperature rise — at best a burn-out, at worst a short-circuit catastrophe. Conventional infrared requires shutdown and panel opening.

02 The OctosX Solution

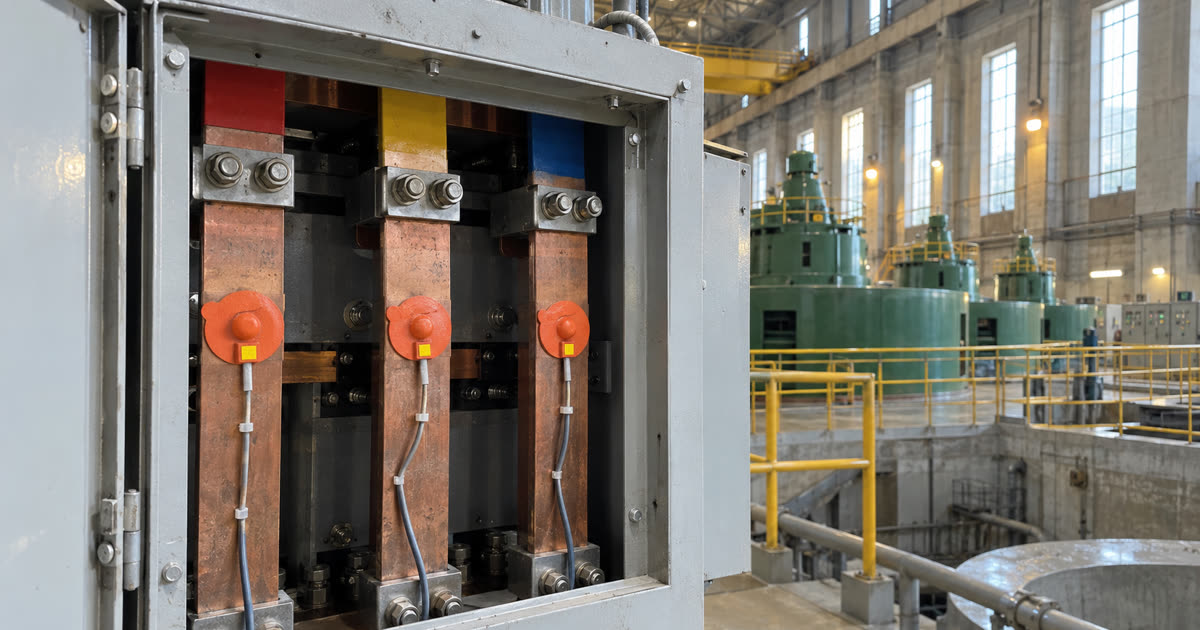

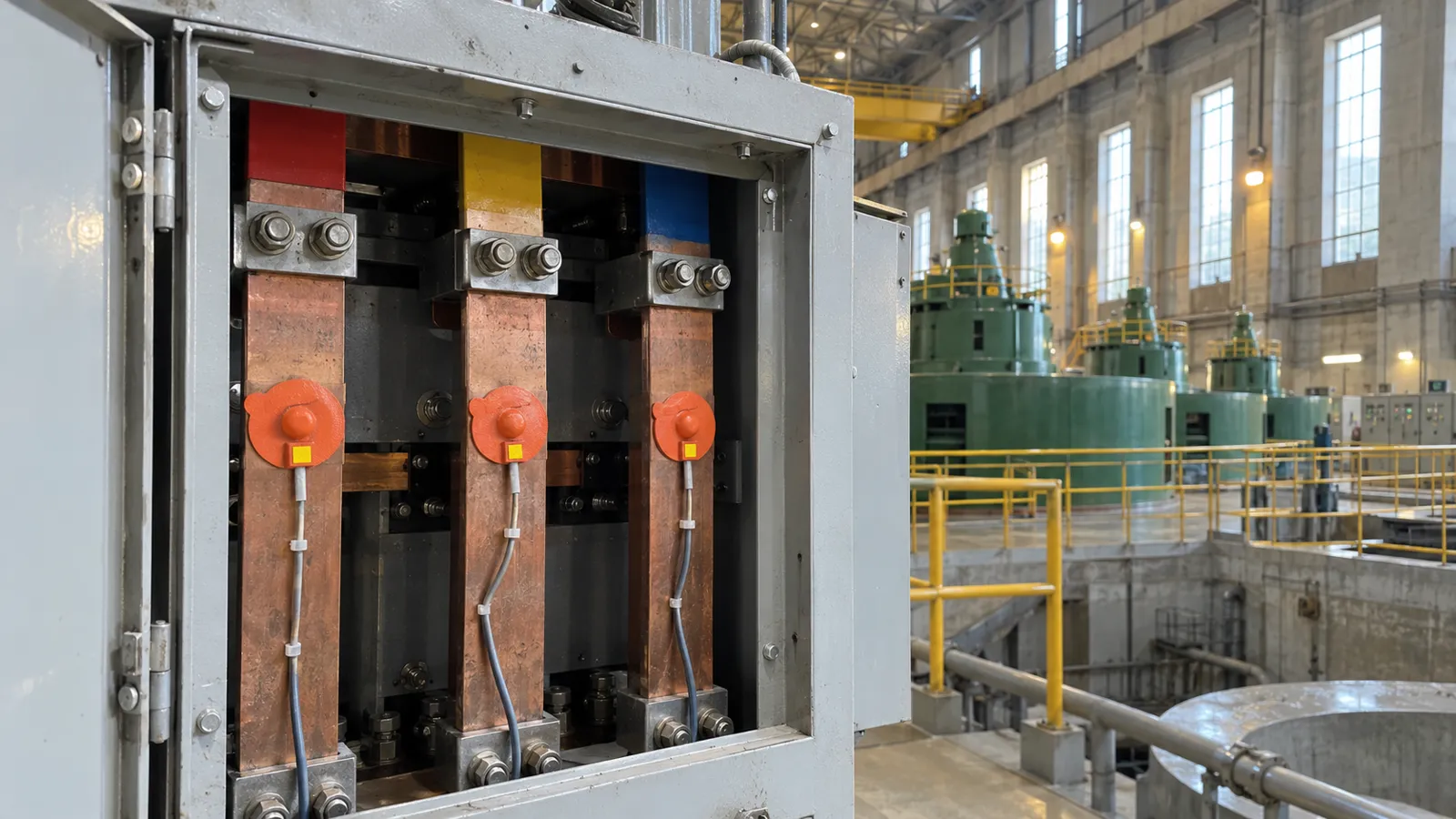

Catching that drift used to mean shutting a unit down, opening the panel, and pointing a thermal camera at each busbar — every month, every phase, every unit. Now a thermal patch sits on each of the three phase busbars. No drilling, no shutdown. The Mingtan control room sees the temperatures continuously, and OctosX fires an alarm if any busbar crosses 90°C.

Sensor & Edge

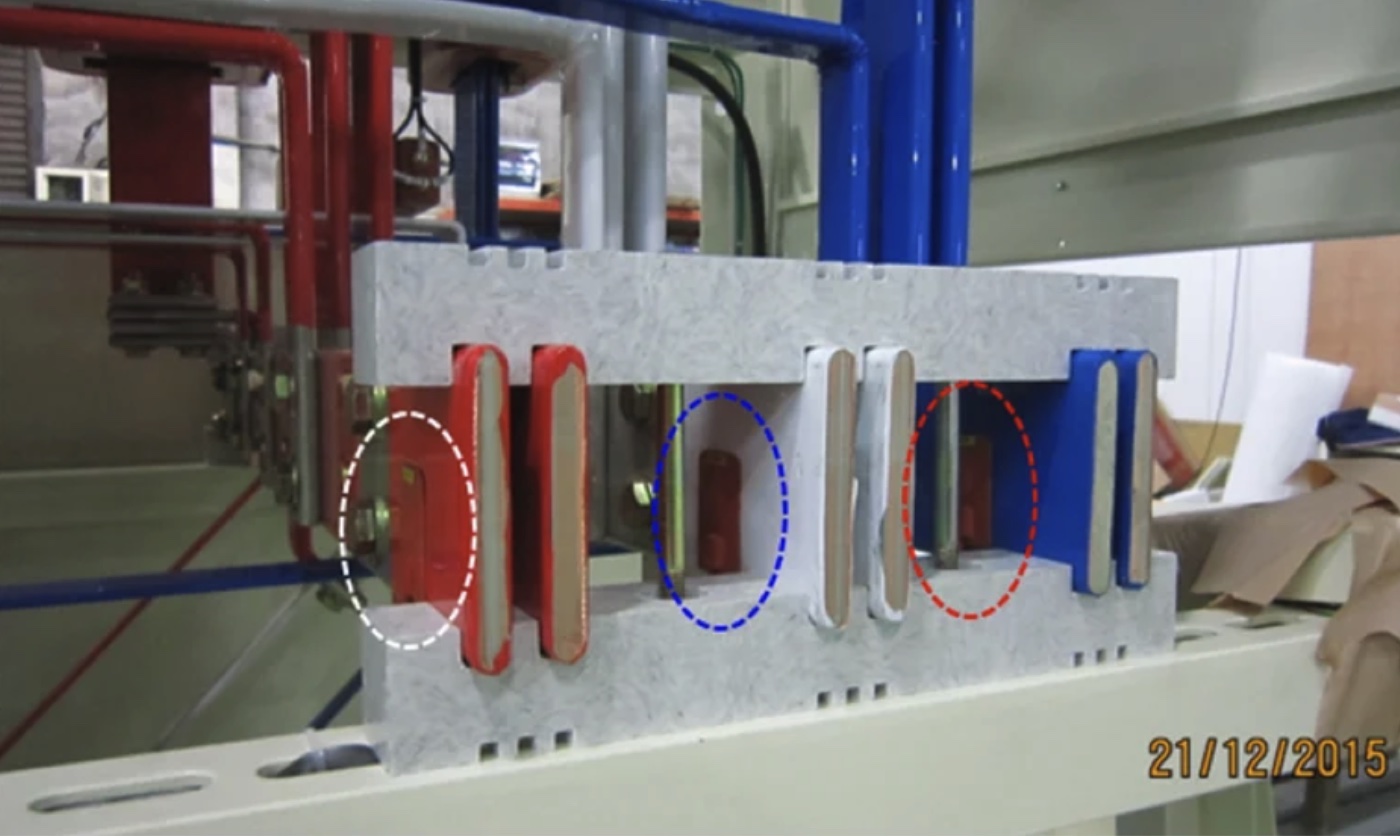

Thermalpas M-TYPE patches adhere directly to all three phases (R/S/T) without drilling.

Cloud Logic & Alerting

OctosX Cloud sets alarm at 90°C, pushes alerts to control-room dashboard, and writes a long-term trend log.

03 The Outcome

Since 2015, three Mingtan units have run for ten years without a single thermal incident. The maintenance crew used to walk every panel with a thermal camera every month. They now read the trend report once a quarter — about 70% less time spent on routine thermal inspection, freed up for real maintenance work that actually moves the needle.

Field Detection

Since 2015, three units at Mingtan have operated 10 years without a single thermal incident.

Quantified Impact

Taipower's maintenance crew now reviews OctosX trend reports quarterly instead of conducting monthly thermal-imaging inspections — 70% reduction in labor.

Key Numbers

10 yrsIn service since 2015

70%Inspection labor saved

10,000ACurrents monitored
